RDS-Knight 快速入門

步驟 1: 安裝 RDS-Knight 在您的電腦

安裝 RDS-Knight 非常簡單。

只要 下載軟體,執行 Setup-RDS-Knight.exe 和遵循「詳細說明的安裝」步驟。

檔案解壓縮和複製到以下目錄:

  • "C:\Program Files (x86)\RDS-Tools\RDS-Knight" 資料夾 (只支援 64 位元作業系統)

免費試用版提供 14 天的完整功能試用。

安裝後,將在桌面加入新的圖示:

畫面截圖 1

步驟 2: 使用 RDS-Knight

您現在可以啟動 RDS-Knight 主程式 和開始設定 RDS-Knight 安全性功能,保護您的伺服器遠離來自內外的威脅。

如果您喜歡 RDS-Knight,請記得購買和啟用您的授權!

請繼續參考 詳細說明取得所有的安全性功能說明。

如果有任何需要協助或問題,歡迎 聯絡我們

RDS-Knight

下載 3.92 MB 295 downloads
RDS-Knight 詳細說明

規劃和管理 RDS-Knight 規劃和管理 RDS-Knight

使用 RDS-Knight 使用 RDS-Knight

系統需求

硬體

RDS-Knight 只支援 64 位元的作業系統,只要能正常執行系統的硬體皆可。

作業系統

RDS-Knight 與以下 OS 相容:

  • Windows Server 2008 / 2008 R2
  • Windows Server 2012 / 2012 R2
  • Windows Server 2016

RDS-Knight

下載 3.92 MB 295 downloads

安裝

執行 RDS-Knight 安裝程式,接著遵循以下安裝步驟

請注意,您必須以系統管理員身分執行這個安裝程式,預設 Windows 將自動顯示提示。

安裝程式螢幕快照 1

按一下 [Next] 接受授權合約。

安裝程式螢幕快照 2

安裝程式現在準備好安裝 RDS-Knight 在您的電腦。

按一下 [Install] 開始進行安裝。

顯示進度列,使您了解安裝進度。

安裝程式螢幕快照 3

請稍待片刻,安裝程式需要幾分鐘時間以進行完整安裝。

安裝程式螢幕快照 4

安裝現在完成,您可以立即開始使用 RDS-Knight!

免費試用版提供 14 天的完整功能試用。

RDS-Knight

下載 3.92 MB 295 downloads

啟用授權

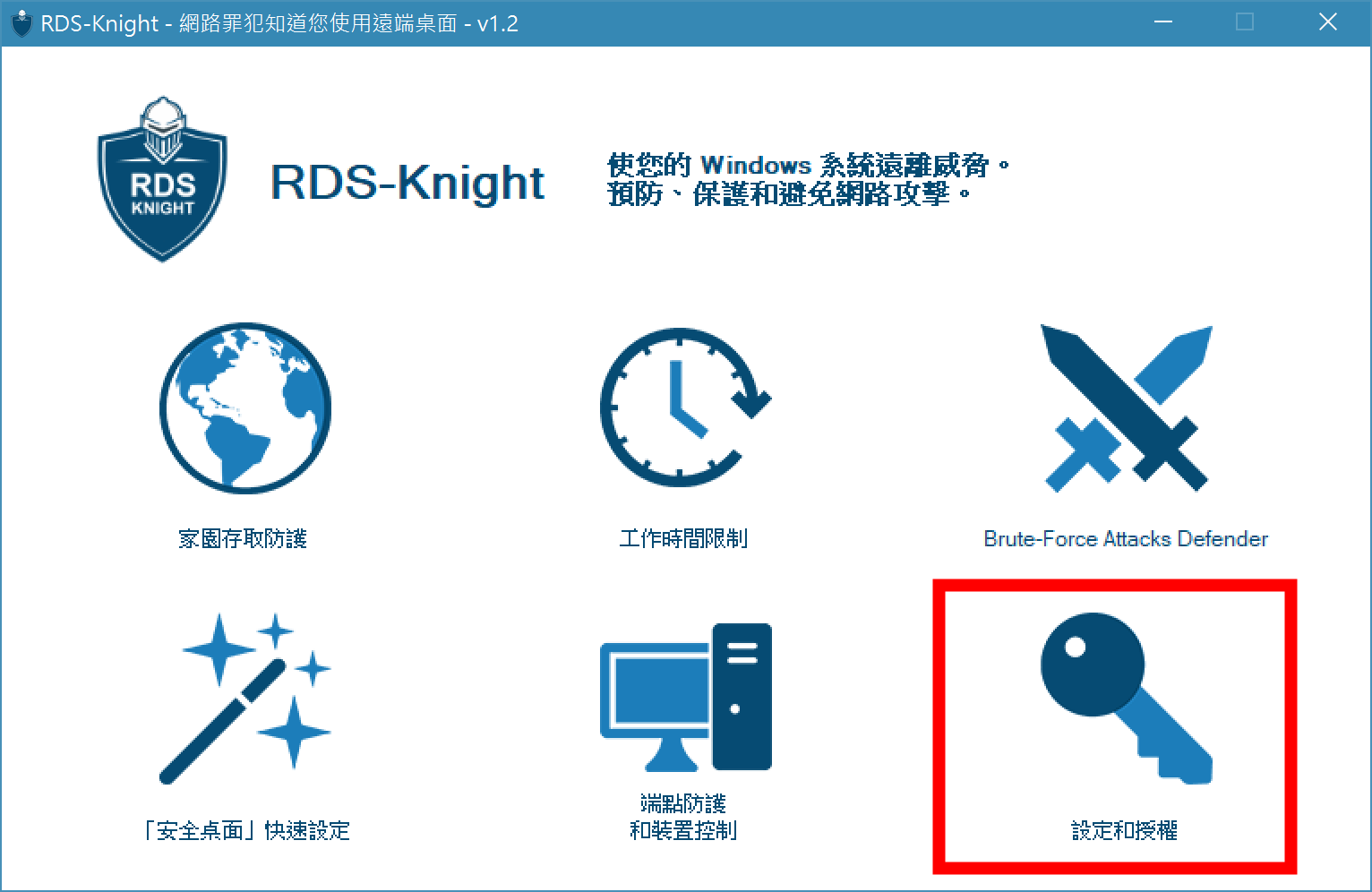

按兩下桌面的「RDS-Knight」圖示來開啟 RDS-Knight,接著按一下 「設定和授權」 方塊。

授權螢幕截圖 1

將顯示以下視窗:

授權螢幕截圖 2

按一下上圖中 [Activate License] 按鈕,並選取平穩或經銷商所提供或從我們的 Licensing Web Portal 所下載的 licenseXXX.lic 檔案。 授權啟用時,將顯示以下確認訊息:

授權螢幕截圖 5

從現在起,您的授權視窗將如下圖所示,以確認啟用的授權內容:

授權螢幕截圖 6

感謝您選擇 RDS-Knight!

RDS-Knight

下載 3.92 MB 295 downloads

使用者介面總覽

總覽

若要啟動 RDS-Knight 介面,只要按兩下桌面的 RDS-Knight 圖示

在主視窗有數個方塊,每個方塊提供您存取各種功能。

RDS-Knight

家園存取防護 工作時間限制 暴力攻擊防護 桌面安全 端點防護 設定和授權 Image HTML map generator

按一下上圖中每個方塊以前往相對章節深入了解每個功能。

RDS-Knight

下載 3.92 MB 295 downloads

家園存取防護

On this tile, you can allow access for users connecting from all countries, or decide to restrict the access to only specific countries.
Select the second button “Allow connections only from this list of countries”, and select the country/countries of your choice on the drop-down menu, they will be added to the list of allowed countries. Then, click on the “A pply now” button.

Homeland 1

在這個範例,您將只允許來自台灣的使用者連線 (查詢 IP 網址: http://software77.net/geo-ip )。

當 IP 位址遭到封鎖時會顯示在右側清單,您可以視需要解除封鎖。

警告: please triple-check that you have at least included the country where you are currently connected from. Otherwise, your IP address will be blocked quite quickly after applying the settings, more precisely as soon as a new user session will be opened on the server, thus disconnecting you without any hope of connecting back again from the same IP. If you get blocked, we recommend that you try connecting from any country you allowed on RDS-Knight, for instance by connecting from another remote server. You can also use your console session to fix the settings, as this connection is not using Remote Desktop Services or any non-local network and will not be blocked by RDS-Knight.

這個軟體包含 MaxMind 建立的 GeoLite ,網址: http://www.maxmind.com。 如果您發現某些 IP 位址未登錄在正確國家,請直接連絡 MaxMind。

RDS-Knight

下載 3.92 MB 295 downloads

工作時間限制

您可以根據每個使用者或群組來設定工作時間限制。

選擇限制條件:

  • 始終允許這個使用者/群組存取
  • 始終封鎖這個使用者/群組存取

或只允許在指定的時間範圍。

您可以設定星期幾並選擇您想要的時間範圍:

Hours 1

使用者/群組規則優先權

使用者在伺服器開啟新的工作階段時:

1) if this user has Working Hours Restrictions directly defined for himself, then these rules are enforced.
2) if this user does not have Working Hours Restrictions directly defined for himself, then RDS-Knight will load any existing Working Hours Restrictions for all the groups of this user, and keep the more permissive rules. For instance if a first group has a rule to block the connection on Monday, a second group has a rule to authorize the connection on Monday from 9 AM to 5 PM and a third group has a rule to authorize the connection on Monday from 8AM to 3PM, then the user will be able to open a connection on Monday from 8AM to 5PM.

Warning: This feature uses server’s time. Using the user’s workstation time and/or time-zone would be pointless, as all the user would only have to change its time-zone to open a session outside his authorized hours.

RDS-Knight

下載 3.92 MB 295 downloads

Brute-Force Attacks Defender

The brute-force attack defender enables you to protect your public server from hackers, network scanners and brute-force robots that try to guess your Administrator login and password. Using current logins and password dictionaries, they will automatically try to login to your server hundreds to thousands times every minute. With this RDP Defender, you can monitor Windows failed login attempts and automatically blacklist the offending IP addresses after several failures.

Defender 1

You can of course configure it to match your needs, for example by adding your own workstation IP address, so this tool never blocks you. Click on the “Tools” menu, then click on “Options and Whitelist”. You can add as many IP addresses as you want in the whitelist. These addresses will never be blocked by the brute-force attacks defender:

Defender 2

You can also set the maximum failed logon attempts from a single IP address (by default, it is 10). And the time of reset for failed logon attempts counters (by default it is 2 hours).

You can start, stop, restart, enable or disable the service by clicking on the service tab.

RDS-Knight

下載 3.92 MB 295 downloads

安全性等級

您可以為每個使用者或群組設定安全性等級。 有 3 個安全性等級:

  • Windows 模式, where the user has access to a default Windows session.
  • 安全桌面模式, where the user has no access to the Control Panel, programs, disks, browser, no right-click…: no access to the server resources. He just has access to documents, printers, Windows key and can disconnect his session.
  • Kiosk 模式 is the most secure one, where the user has very limited actions in his session.

安全性 1

自訂化

在任何模式下,您都可以在三個等級上自訂安全性原則:

桌面安全性:

安全性 2

磁碟控制:

安全性 3

應用程式控制:

安全性 4

使用者/群組規則優先權

使用者在伺服器開啟新的工作階段時:

1) If this user has a Security Level directly defined for himself, then this Security Level is enforced.
2) If this user does not have a Security Level directly defined for himself, then RDS-Knight will load any existing Security Level settings for all the groups of this user, and keep the more permissive rules.

For instance if a first group has a rule to remove the Recycle Bin icon from the desktop, but this rule is disabled for a second group, then the user will have the Recycle Bin icon on his desktop. The same priority rules will apply on every custom rule (Desktop Security, Disks Control and Applications Control) as well as for the principal Security Level (the Windows Mode being considered more permissive than the Secured Desktop Mode, which is considered more permissive than the Kiosk Mode).

RDS-Knight

下載 3.92 MB 295 downloads

端點防護和裝置控制

The endpoint protection and device control allows you to control users device by allowing each user to use only a specific device, which will be checked on any incoming session. A logon from any invalid device name will be blocked.

Endpoint 1

在這個範例,User2 將必須使用裝置名稱 PC-453 進行連線。

Auto-fill of device name field

You might notice that the Device Name field is already filled with a device name for some users. In order to help the administrator, RDS-Knight will automatically save the name of the latest device used to connect to the server by any user who does not have the Endpoint Protection and Device Control feature enabled. After one working day, the device name of most users will be known by RDS-Knight, thus allowing you to quickly enable the Endpoint Protection feature without having to check every user’s workstation name.

RDS-Knight

下載 3.92 MB 295 downloads

設定和授權

On this tile, you can see if you activated security features by looking at the Protection Status ticks.

On this example, all security features are activated:

Settings 1

Below, you can see your server information, with:

  • your server name
  • your serial number
  • if you have a trial license or an activated one
  • the end of your support date

At the right of this window, you can activate your license, see this page.

You can check for update by clicking on the button below it, where you will see your installed version, the latest version available and download it:

Settings 2

RDS-Knight

下載 3.92 MB 295 downloads

常見問題集

有任何疑問? 請查看 RDS-Knight FAQ

立即下載!

RDS-Knight 是防範遠端桌面網路犯罪威脅的武器。

這個試用版本包含 RDS-Knight 的所有功能,14 天的免費試用。
